FEP Calculations

PRISM automates the setup, execution, and analysis of Free Energy Perturbation (FEP) calculations for relative binding free energies between similar ligands using GROMACS hybrid topologies.

Quick Start

prism protein.pdb ligand_ref.mol2 -o fep_output \
  --fep \
  --mutant ligand_mut.mol2 \
  --ligand-forcefield gaff2 \
  --forcefield amber14sb_OL15 \
  --fep-config fep.yaml

This command builds the FEP scaffold. The actual MD workflow is usually started afterwards from the generated FEP directory with run_fep.sh all.

If you want the full YAML parameter reference, jump directly to FEP YAML Reference.

For a step-by-step worked example, see the FEP Tutorial.

Recommended First Run

For most users, the shortest reliable path is:

1. prepare a receptor plus a reference/mutant ligand pair and a minimal fep.yaml
2. generate the scaffold with prism ... --fep --fep-config fep.yaml
3. run run_fep.sh all from the generated FEP directory
4. inspect common/hybrid/mapping.html to confirm the perturbation is chemically sensible
5. run prism --fep-analyze on the completed bound and unbound legs to validate the numerical result

The rest of this page explains what PRISM generates, which defaults it uses, and which advanced options you may want to change later.

Practical reminders

• inspect common/hybrid/mapping.html before committing to long production runs
• keep the default lambda schedule unless you have a concrete reason to reshape it
• prefer analyzing all matching repeat* pairs together rather than a single repeat when resources allow

Overview

PRISM's FEP workflow consists of five stages:

graph LR
    A[Ligand Pair] --> B[Atom Mapping]
    B --> C[Single Topology]
    C --> D[FEP Scaffold]
    D --> E[Bound Leg]
    D --> F[Unbound Leg]
    E --> G[Analysis]
    F --> G

1. Atom Mapping: distance-based matching between the reference and mutant ligands
2. Single Topology: one ligand topology with A/B-state parameters
3. FEP Scaffold: the complete, ready-to-run setup (hybrid topology, bound/unbound legs, MDPs, and scripts)
4. Lambda Windows: per-window equilibration and production inputs
5. Analysis: BAR, MBAR, and TI estimators over the window data

Mapping and Single Topology

Note: PRISM implements the GROMACS single topology approach. The hybrid.itp file stores both state A and state B parameters in a single molecule description.

Atom Classes

PRISM classifies atoms as:

• Common atoms: shared between both ligands
• Transformed atoms: only present in state A or only in state B; these are turned into dummy atoms (decoupled) in the state where they don't exist
• Surrounding atoms: retained in the single topology representation and handled with state-specific parameters from state A or state B (no dummy treatment)

Distance-Based Atom Mapping

PRISM identifies common atoms using geometry and element identity and surrounding atoms with charge/FF-based filtering.

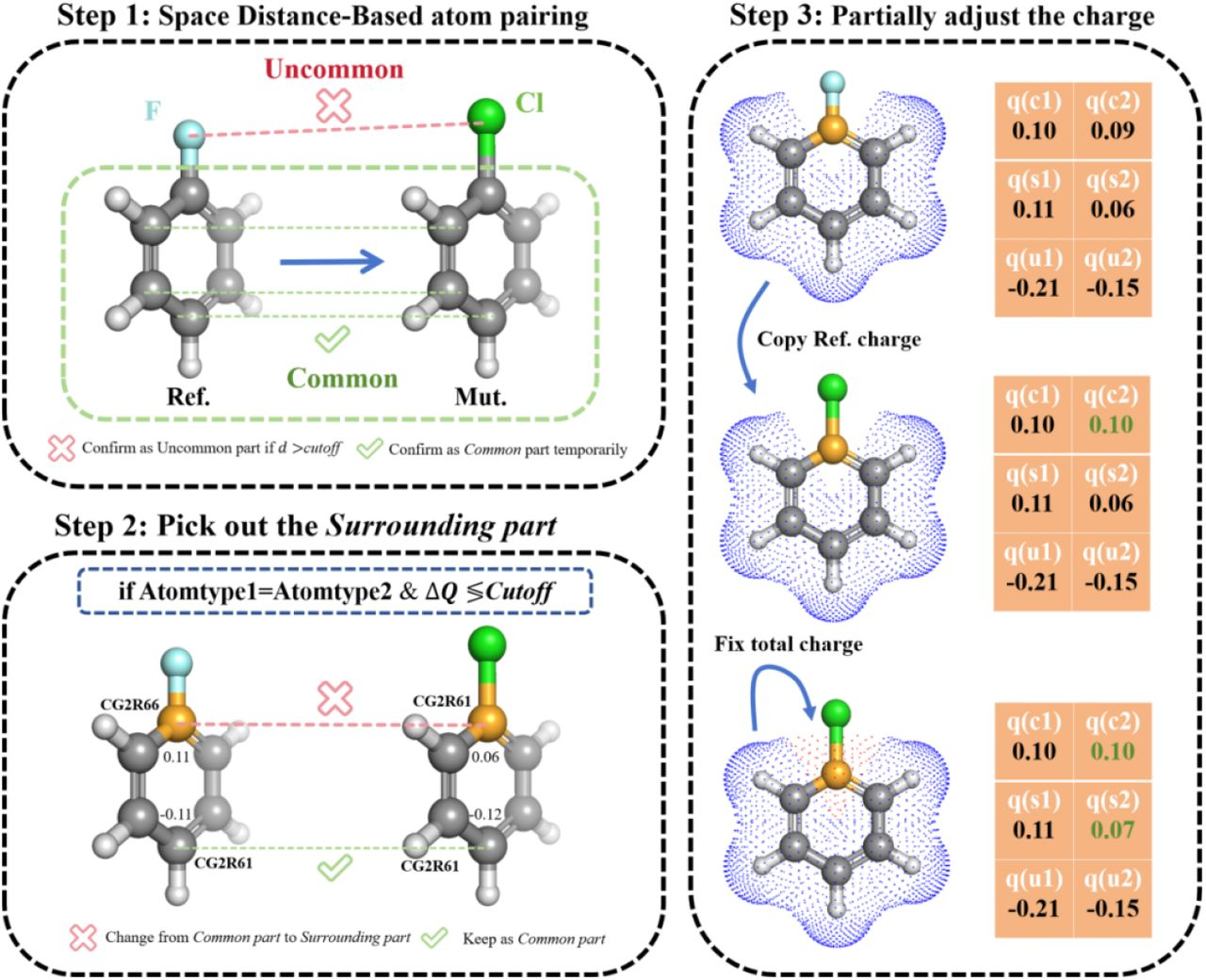

Charge Redistribution

Why charge redistribution matters: FEP calculations measure free energy differences by alchemically transforming one ligand into another. In practice, smaller and more local perturbations usually improve phase-space overlap and make the calculation easier to converge.

When atoms are classified as common (shared between both ligands), keeping their electrostatic properties as consistent as possible usually reduces the magnitude of the alchemical transformation. This often leads to:

• Better convergence — fewer lambda windows needed for adequate overlap
• Lower variance — smaller statistical uncertainty in the final \(\Delta G\)
• Improved physical realism — common regions should behave consistently in both states

PRISM implements this through two complementary mechanisms:

1. charge_common: Controls how shared atoms inherit charge information
2. charge_reception: When atoms transform, PRISM redistributes the compensating charge so that the end states remain consistent with the initial total charge

Parameter	Default	Meaning
dist_cutoff	0.6 nm	Distance cutoff for candidate atom matches.
charge_cutoff	0.05	Charge-difference filter used during mapping/classification.
charge_common	mean	Default shared-atom charge strategy.
charge_reception	surround	Default redistribution target for compensating charge.

Note

PRISM uses GROMACS-style length units internally. A mapping cutoff of 0.6 means 0.6 nm, not 0.6 Å.

For detailed parameter descriptions, charge options, and allowed redistribution modes, see the mapping section below.

For the current GROMACS discussion of free-energy pathways, end states, and interaction handling, see the GROMACS free-energy references.^{1 2}

GROMACS-Compatible Single Topology

The generated hybrid.itp stores both state A and state B parameters in a single molecule description. In GROMACS this means the end states are encoded in the topology, while the path between them is controlled by the lambda schedule in the generated MDP files.

For the current GROMACS description of free-energy end states, lambda vectors, and interaction handling, see the GROMACS free-energy references.^{1 2} The gmx grompp manual also documents -rb for B-state reference coordinates.³

Lambda Schedules

For most ligand series, start with the default decoupled + nonlinear schedule. Only change this section if you have a specific reason to tune window placement or coupling order. The exact keys and defaults are listed in the lambda section of the FEP YAML Reference.

PRISM-generated MDPs write separate lambda vectors for:

Lambda vector	Role
coul-lambdas	Controls electrostatic transformation.
vdw-lambdas	Controls van der Waals transformation.
bonded-lambdas	Controls bonded-term interpolation.
mass-lambdas	Controls mass interpolation.

This means the implementation is more specific than a single scalar lambda applied uniformly to all interaction terms.

Supported schedule modes

Mode	Default?	Meaning
decoupled	yes	Coulomb transforms first, then VDW transforms.
coupled	no	Coulomb and VDW follow the same schedule together from 0 to 1.
custom	no	User supplies explicit custom_coul_lambdas and custom_vdw_lambdas. Shorter arrays are padded with their final value.

The following figure visualizes the three lambda schedule modes:

Figure explanation

• Decoupled (default): a two-stage path where Coulomb (red) completes first (windows 0-11), followed by VDW (blue) (windows 12-31). Bonded (gray dashed) and mass (green dotted) follow the Coulomb schedule.
• Coupled: Coulomb and VDW change together across all 32 windows and therefore share the same lambda progression.
• Custom: user-supplied arrays can place Coulomb and VDW transitions at different points; the example here shows an earlier Coulomb jump and a later VDW transition.

Supported distributions

The following figure compares the three supported point distributions using 32 lambda points:

Distribution	Default?	Meaning
linear	no	Uniform spacing, i.e. linspace(0, 1, n_points).
nonlinear	yes	PRISM's empirical endpoint-dense reference schedule: a fixed 32-point table, subsampled for fewer points and interpolated for more points.
quadratic	no	An empirical symmetric power-law family with tunable endpoint bias; use it when you want more or fewer points near \(\lambda=0\) and \(\lambda=1\) without writing explicit custom arrays.

For the quadratic family, PRISM uses the empirical symmetric piecewise definition

\[ \lambda(x)= \begin{cases} \dfrac{1}{2}(2x)^p, & x \le 0.5 \\ 1 - \dfrac{1}{2}\left(2(1-x)\right)^p, & x > 0.5 \end{cases} \]

where \(p\) is the quadratic_exponent. This is an empirical schedule-shaping parameter rather than a theoretically unique optimum. The historical behavior corresponds to quadratic_exponent: 2.0; larger values make the endpoints denser and the middle sparser. If you need exact placement, use custom_coul_lambdas and custom_vdw_lambdas instead. The figure above overlays both the default p=2 curve and a stronger p=4 example.

Current GROMACS references for lambda schedules and interaction-specific lambda control are the GROMACS free-energy chapters.^{1 2}

Build Workflow

Build the Scaffold

prism protein.pdb ligand_ref.mol2 -o fep_output \
  --fep \
  --mutant ligand_mut.mol2 \
  --ligand-forcefield gaff2 \
  --forcefield amber14sb_OL15 \
  --fep-config fep.yaml

PRISM then:

1. maps the ligand pair and writes the mapping report - PRISM aligns the reference and mutant ligands, classifies atoms as common / transformed / surrounding, and writes common/hybrid/mapping.html. This is the first model-quality checkpoint, before any MD is run.
2. builds the hybrid ligand files - PRISM writes the hybrid topology (hybrid.itp), coordinates (hybrid.gro), and supporting includes in common/hybrid/. These files define the A/B-state ligand used in both legs.
3. prepares the bound leg - PRISM inserts the hybrid ligand into the protein system, then writes the leg-specific input structure, topology, MDP files, and execution scripts needed for EM, NVT, NPT, and production windows.
4. prepares the unbound leg - PRISM builds the solvated hybrid-ligand system and reuses the bound-leg box vectors so the two legs start from the same box dimensions.

Generated Execution Scripts and Configuration

PRISM then generates the execution environment for both legs:

1. writes per-leg production helper scripts - run_prod_standard.sh and run_prod_repex.sh are leg-level helpers. They are normally called by run_fep.sh, rather than used as the primary user entry point.
2. writes a root-level run_fep.sh - this is the main entry point most users run. It acts as both a target dispatcher and a full workflow runner: it executes leg-level EM/NVT/NPT first, then dispatches production through either run_prod_standard.sh or run_prod_repex.sh according to execution.mode. You can include this in your slurm script.
3. writes per-window MDPs - PRISM generates lambda-specific em_short, npt_short, and prod MDPs so each window receives its own short relaxation before production.
4. writes fep_scaffold.json - a scaffold manifest that records the generated layout and key metadata. It is useful if you need to inspect or troubleshoot the scaffold.

Execution Workflow

For each leg, PRISM prepares the following execution stages:

1. leg-level equilibration - EM, NVT, NPT stages for the initial structure each leg
2. per-window relaxation - each lambda window receives its own short lambda-specific relaxation (em_short, npt_short) before production
3. production execution - final production runs (prod) for each lambda window

This means each lambda window is not launched directly from the leg-level NPT state; it first receives its own short lambda-specific relaxation.

This workflow is designed to make the scaffold easier to run and restart from a breakpoint.

Generated MDP Behavior

The generated per-window MDPs include:

MDP item	Current behavior
init-lambda-state	Set to the current window index.4
calc-lambda-neighbors	-1 in window-level equilibration and production templates.5
Lambda vectors	Explicit coul-lambdas, vdw-lambdas, bonded-lambdas, and mass-lambdas are written.
Soft-core settings	sc-alpha and sc-sigma are included in the generated templates.

For the current GROMACS description of these free-energy controls, see the .mdp options and free-energy references listed at the end of this page.⁶

Production Execution Modes

run_fep.sh chooses the production helper according to execution.mode after leg-level EM, NVT, and NPT finish. In other words, the mode controls the production-stage backend, not the earlier leg-level equilibration stages.

Mode	What PRISM does	When to use it
standard	Calls run_prod_standard.sh, which performs per-window lambda-specific relaxation (em_short, npt_short) and then launches each window independently. parallel_windows controls how many windows run at once, and GPUs are assigned round-robin across active windows.	The default choice for straightforward throughput-oriented runs.
repex	Calls run_prod_repex.sh, which prepares the same per-window prerequisites and then launches lambda replica exchange with gmx_mpi -multidir.	Use when you want exchange between neighboring lambda states instead of fully independent windows.

Running FEP

The generated run_fep.sh script accepts one or more targets. If you call it with no arguments, it defaults to all.

In normal use, run_fep.sh is the script you run directly. The per-leg helper scripts (run_prod_standard.sh and run_prod_repex.sh) exist so that run_fep.sh can dispatch the correct production backend after leg-level equilibration has completed.

cd fep_output/GMX_PROLIG_FEP

bash run_fep.sh bound
bash run_fep.sh unbound
bash run_fep.sh all

Target forms

Target form	Meaning
bound	Run the bound leg. If multiple replicas exist, this expands to all bound replicas.
unbound	Run the unbound leg. If multiple replicas exist, this expands to all unbound replicas.
all	Run all configured bound and unbound legs or replicas.
bound1 / unbound2	Run one specific replica.
bound1-3	Run a replica range for one leg.
bound1 unbound3	Run multiple explicit targets in one command.

Examples:

bash run_fep.sh bound1
bash run_fep.sh unbound2
bash run_fep.sh bound1-3
bash run_fep.sh bound1 unbound1

Runtime environment variables

The following overrides are mainly useful when you need to adapt the generated scripts to the resources available on a specific machine.

Note

PRISM_NUM_GPUS, PRISM_PARALLEL_WINDOWS, PRISM_OMP_THREADS, and PRISM_TOTAL_CPUS affect the generated run scripts only. They do not change the scaffold, topology, or lambda schedule.

Variable	Meaning
PRISM_FEP_MODE	Overrides execution.mode at runtime (standard or repex).
PRISM_NUM_GPUS	Overrides the production GPU pool size used by run_prod_standard.sh or run_prod_repex.sh.
PRISM_PARALLEL_WINDOWS	Overrides the number of concurrent windows in standard mode.
PRISM_OMP_THREADS	Explicitly sets the OpenMP thread count used by the generated scripts.
PRISM_TOTAL_CPUS	Sets a total CPU budget; if PRISM_OMP_THREADS and OMP_NUM_THREADS are unset, PRISM derives threads per worker from this value.
PRISM_GPU_ID	Forces a specific physical GPU for the current run_fep.sh invocation during leg-level EM/NVT/NPT. Production windows still use the generated production helper scripts and their own GPU pool logic.
PRISM_CPU_OFFSET	Forces the CPU pin offset used for the current leg during leg-level EM/NVT/NPT.
PRISM_MDRUN_UPDATE_MODE	Overrides update placement for GPU runs (gpu, cpu, or none).
OMP_NUM_THREADS	Generic OpenMP override; PRISM uses it unless PRISM_OMP_THREADS is set.

Note

You can run run_prod_standard.sh or run_prod_repex.sh directly if the leg has already completed its leg-level build/EM/NVT/NPT stages, but the normal workflow is to launch run_fep.sh and let it handle both equilibration and production dispatch.

Typical examples:

# Force repex for this run, even if the scaffold was generated with standard mode
PRISM_FEP_MODE=repex bash run_fep.sh bound

# Limit production to two GPUs and two concurrent windows
PRISM_NUM_GPUS=2 PRISM_PARALLEL_WINDOWS=2 bash run_fep.sh bound

# Derive threads from a total CPU budget
PRISM_TOTAL_CPUS=32 PRISM_NUM_GPUS=4 bash run_fep.sh all

# Pin leg-level equilibration to one specific GPU
PRISM_GPU_ID=2 bash run_fep.sh unbound

Analysis

PRISM FEP produces two different HTML reports at different stages of the workflow, and they should be read separately.

Mapping Report (pre-MD quality check)

PRISM writes common/hybrid/mapping.html during scaffold construction, before any MD is launched.

Note

Treat common/hybrid/mapping.html as the first checkpoint before running MD. If the mapped common core or transformed region looks chemically wrong, fix the scaffold first rather than continuing to production.

Use this report to inspect:

• atom correspondence between the reference and mutant ligands
• common / transformed / surrounding classifications
• charge patterns and atom labels
• whether the hybridization result looks chemically local and sensible

The report contains:

• a display toolbar that lets you switch between FEP Classification and Element coloring, toggle charges and atom labels, reset the view, export a PNG snapshot, jump to the atom-details section, or print the page
• a legend that reports both the classification counts (Common, Transformed A/B, Surrounding A/B) and the element color key used in the alternate coloring mode
• two independently pannable and zoomable ligand views for side-by-side inspection
• hover tooltips that show the atom name, element, charge, classification, and the mapped partner atom in the opposite ligand
• an atom-details section with summary counts and a paired table listing atom names, element types, atom types, charges, and classifications for both ligands

Example mapping report generated during scaffold construction.

A quick checklist for mapping.html:

• the common core should match your chemical intuition for the shared scaffold
• the transformed region should be localized to the actual mutation site
• surrounding atoms should look like a narrow boundary region, not most of the ligand
• if these classes look implausible, revisit the mapping parameters before launching MD

Numerical Analysis Report (post-MD validation)

After production has generated dhdl.xvg files for the windows, run prism --fep-analyze to build the numerical free-energy report.

prism --fep-analyze \
  --bound-dir fep_output/GMX_PROLIG_FEP/bound \
  --unbound-dir fep_output/GMX_PROLIG_FEP/unbound \
  --estimator MBAR BAR TI \
  --bootstrap-n-jobs 8 \
  --output fep_results.html \
  --json fep_results.json

Command-Line Parameters

Parameter	Type	Default	Description
Required Arguments
--bound-dir	PATH	-	Bound leg directory (repeat dir or leg dir with repeat* subdirs)
--unbound-dir	PATH	-	Unbound leg directory (repeat dir or leg dir with repeat* subdirs)
Output Options
--output, -o	FILE	fep_analysis_report.html	Output HTML report file
--json	FILE	-	Also save results to JSON file (optional)
Analysis Options
--estimator, -e	LIST	MBAR	Free energy estimator(s): TI, BAR, MBAR (multiple allowed)
--all-estimators	flag	-	Run all estimators (TI, BAR, MBAR) with comparison report
--backend	CHOICE	alchemlyb	Analysis backend: alchemlyb (TI/BAR/MBAR) or gmx_bar (BAR only)
--temperature	FLOAT	310.0	Simulation temperature in Kelvin
--components	LIST	elec vdw	Energy components to analyze
--bootstrap-n-jobs	INT	1	Parallel workers for bootstrap analysis (1 = serial)
--no-progress	flag	-	Disable progress bars (useful for logging)

Note

The recommended input form is to pass the leg directories themselves (.../bound and .../unbound). PRISM then auto-discovers all repeat* subdirectories under each leg and performs aggregated analysis across them. The CLI also checks that the number of bound and unbound repeats matches before analysis starts. You can still pass a single repeat directory (bound/repeat1, unbound/repeat1) if you explicitly want to analyze only one repeat.

PRISM supports three standard estimators:

Estimator	Full Name	Description	Use Case
TI	Thermodynamic Integration	Numerical integration of \(\partial H / \partial \lambda\) across windows	Good for smooth transformations with well-sampled gradients
BAR	Bennett Acceptance Ratio	Optimal overlap between neighboring windows	Robust for standard FEP with adequate sampling
MBAR	Multistate BAR	Uses all data simultaneously with reweighting	Most efficient; provides overlap matrix for quality control

The analysis workflow is:

1. read dhdl.xvg files from each window_* directory
2. compute \(\Delta G\) for the bound leg and the unbound leg
3. report binding free energy as \(\Delta G_{\mathrm{bind}} = \Delta G_{\mathrm{unbound}} - \Delta G_{\mathrm{bound}}\)
4. estimate uncertainty by bootstrap resampling when requested
5. generate an HTML report

The generated HTML file is often named fep_results.html, fep_analysis_report.html, or fep_multi_estimator_report.html, depending on your command and output naming.

Use the numerical report to inspect:

• \(\Delta G\) and \(\Delta\Delta G\) summary values
• overlap matrices between neighboring windows when you analyze with MBAR
• convergence behavior over time
• repeat statistics when multiple repeats are analyzed together
• agreement or disagreement between TI, BAR, and MBAR when you request multiple estimators

Not every report shows every panel. In particular, the overlap matrix is MBAR-only, repeat summaries appear only when multiple repeats are aggregated, and estimator comparison is most useful when you request more than one estimator.

How to read the main analysis panels:

Panel	When it appears	What it is for	What usually looks healthy	What is concerning
Repeat summary	When multiple repeats are analyzed together.	Compares replicate legs or aggregated repeat statistics.	Repeats tell a similar story and no single repeat is an obvious outlier.	One repeat dominates the average or repeats disagree more than their uncertainties suggest.
Estimator summary	When you request multiple estimators, such as TI + BAR + MBAR.	Compares different estimators on the same dataset.	TI/BAR/MBAR are broadly consistent within uncertainty.	One estimator strongly disagrees with the others or only one estimator appears stable.
Overlap matrix	MBAR analyses only.	Shows whether neighboring lambda windows sample sufficiently similar states for reweighting.	Strongest values cluster near the diagonal and neighboring windows show visible overlap.	Very weak neighboring overlap, isolated windows, or obvious gaps between adjacent states.
Convergence plots	Whenever time-convergence analysis succeeds.	Show how the estimated free energy changes as more trajectory data are included.	Curves flatten with time and late-time estimates stay close to each other.	Large late-time drift, strong oscillation, or different trajectory fractions giving very different answers.
Uncertainty / bootstrap	When bootstrap resampling is enabled and produces usable samples.	Quantifies statistical uncertainty from resampling.	Error bars are small enough for the decision you want to make and are compatible with repeat-to-repeat variation.	Very large intervals, unstable bootstrap behavior, or uncertainty that is comparable to the reported signal.

Example numerical FEP analysis report generated after production and post-processing.

Warning

Do not interpret a reported free-energy value without checking overlap, convergence, and estimator agreement in the numerical report.

FEP YAML Reference

If you started from the workflow sections above and now want the exact configuration keys, use the following reference. This section is intentionally more detailed than the workflow overview: it combines core options that many users may touch with advanced or implementation-level notes that are useful when you need tighter control.

Configuration Map

block-beta
    columns 3

    B["mapping<br/>dist_cutoff<br/>charge_cutoff<br/>charge_common<br/>charge_reception"]
    C["lambda<br/>strategy / distribution<br/>windows / coul_windows / vdw_windows<br/>custom_coul_lambdas / custom_vdw_lambdas"]
    D["simulation<br/>equilibration / production time<br/>dt / temperature / pressure<br/>soft_core: alpha / sigma"]

    F["electrostatics<br/>rcoulomb"]
    A(("fep.yaml"))
    G["vdw<br/>rvdw"]

    H["output<br/>trajectory / energy / log intervals"]
    I["execution<br/>mode / num_gpus / parallel_windows<br/>total_cpus / omp_threads<br/>use_gpu_pme / mdrun_update_mode"]
    J["replicas"]

    A --> B
    A --> C
    A --> D
    A --> F
    A --> G
    A --> H
    A --> I
    A --> J

    style A fill:#e8f1ff,stroke:#4c78a8,stroke-width:2px,color:#111
    style B fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style C fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style D fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style F fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style G fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style H fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style I fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111
    style J fill:#f8f9fb,stroke:#7a869a,stroke-width:1px,color:#111

Text fallback for the same structure:

fep.yaml
|- mapping
|- lambda
|- simulation
|- electrostatics
|- vdw
|- output
|- execution
|- replicas

Example fep.yaml

mapping:
  dist_cutoff: 0.6
  charge_cutoff: 0.05
  charge_common: mean
  charge_reception: surround

lambda:
  strategy: decoupled
  distribution: nonlinear
  quadratic_exponent: 2.0
  windows: 32
  coul_windows: 12
  vdw_windows: 20
  # custom_coul_lambdas: [0.0, 0.2, 0.5, 1.0]
  # custom_vdw_lambdas: [0.0, 0.0, 0.5, 1.0]

simulation:
  equilibration_nvt_time_ps: 500
  equilibration_npt_time_ps: 500
  per_window_npt_time_ps: 100
  production_time_ns: 2.0
  dt: 0.002
  temperature: 310
  pressure: 1.0

soft_core:
  alpha: 0.5
  sigma: 0.3

electrostatics:
  rcoulomb: 1.0

vdw:
  rvdw: 1.0

output:
  trajectory_interval_ps: 500
  energy_interval_ps: 10
  log_interval_ps: 10
  nstdhdl: 100

execution:
  mode: standard
  num_gpus: 4
  parallel_windows: 4
  total_cpus: 56
  omp_threads: 14
  use_gpu_pme: true
  mdrun_update_mode: auto

replicas: 3

mapping section

charge_common modes

Mode	Meaning
ref	Keep the reference ligand (state A) charge on common atoms. Works when optimizing a lead compound.
mut	Use the mutant ligand (state B) charge on common atoms.
mean	Average the A/B charges on common atoms. This is the default because it usually reduces the electrostatic perturbation.
none	Keep original per-state charges, skip common-atom averaging/redistribution, and let charge-mismatched candidate common atoms fall back to the surrounding class.

charge_cutoff

charge_cutoff is applied after geometric matching, during the common-versus-surrounding decision. If two atoms are geometrically compatible but their charge difference is larger than the cutoff, PRISM does not keep them in the clean common set; it reclassifies that matched pair as surrounding_a / surrounding_b. In other words, they remain position-matched, but they are treated as a perturbed local environment rather than a charge-consistent common core.

Charge redistribution modes

PRISM documents the following charge_reception modes for the standard workflow:

Mode	Default?	Meaning
surround	yes	Redistribute onto atoms surrounding the transformed region.
unique	no	Redistribute only onto atoms unique to the transformed region.
none	no	Disable redistribution after common-atom assignment. In practice this is safest when paired with charge_common: none; otherwise the end-state total charges may no longer match the original ligands.

These are the standard user-facing modes exposed by the PRISM FEP workflow. The older FEbuilder CLI used surround_ext as a third redistribution mode, but PRISM’s standard distance-based mapping path documents surround, unique, and none for normal use.

Warning

Treat charge_reception: none as a special-case setting. It pairs naturally with charge_common: none. If you mix charge_reception: none with charge_common: ref, mut, or mean, PRISM will still modify common-atom charges but will not redistribute the resulting charge difference, so the end-state total charges can drift away from the original ligands.

lambda section

Key	Default	Meaning
strategy	decoupled	Lambda scheduling mode: decoupled, coupled, or custom.
distribution	nonlinear	Distribution along the schedule: linear, nonlinear, or quadratic.
quadratic_exponent	2.0	Empirical endpoint-bias exponent used when distribution: quadratic; larger values give denser endpoints, while custom_*_lambdas remains the most explicit option.
windows	32	Total window count for coupled, and target total for decoupled.
coul_windows	12	Coulomb-stage window count in decoupled mode.
vdw_windows	20	VDW-stage window count in decoupled mode.
custom_coul_lambdas	none	Required for custom; YAML float list such as [0.0, 0.2, 0.5, 1.0] for the Coulomb schedule. See Example fep.yaml.
custom_vdw_lambdas	none	Required for custom; YAML float list such as [0.0, 0.0, 0.5, 1.0] for the VDW schedule. See Example fep.yaml.

If you use only the top-level CLI flag --lambda-windows, treat it as a simple convenience override. For reproducible FEP work, prefer an explicit YAML lambda section.

Reference: see the current GROMACS free-energy references listed at the end of this page.

simulation section

Key	Default	Meaning
equilibration_nvt_time_ps	500	Leg-level NVT equilibration time in ps.
equilibration_npt_time_ps	500	Leg-level NPT equilibration time in ps.
per_window_npt_time_ps	100	Per-window short NPT equilibration time in ps before production.
production_time_ns	2.0	Production length per lambda window in ns.
dt	0.002	MD time step in ps.
temperature	310	Simulation temperature in K.
pressure	1.0	Simulation pressure in bar.

These are FEP-facing controls. The first two settings govern leg-level equilibration, per_window_npt_time_ps governs the short per-window relaxation before each production window, and production_time_ns sets the production length of each lambda window.

soft_core section

Key	Default	Meaning
alpha	0.5	Soft-core alpha parameter for alchemical nonbonded interactions.
sigma	0.3	Soft-core sigma parameter in nm.

This section is FEP-specific and directly controls the alchemical soft-core treatment in the generated window MDPs. In GROMACS, these correspond to the sc-alpha and sc-sigma .mdp options, while the broader physical discussion of soft-core behavior appears in the free-energy interaction reference (including sc-coul).^{7 8 9 2}

Nonbonded settings (electrostatics + vdw)

These settings are not unique to FEP. They are PRISM/GROMACS-style nonbonded controls that the FEP scaffold reuses when writing the window-specific MDP files.

Section	Key	Default	Meaning
electrostatics	rcoulomb	1.0	Requested Coulomb cutoff in nm.
vdw	rvdw	1.0	Requested van der Waals cutoff in nm.

The generated FEP templates use the configured rcoulomb and rvdw values directly (default 1.0 nm).

Output controls (output section)

Like the nonbonded settings above, these are general MD output controls that PRISM also reuses for FEP scaffolds.

Key	Default	Meaning
trajectory_interval_ps	500	Trajectory output interval in ps.
energy_interval_ps	10	Energy output interval in ps.
log_interval_ps	10	Log output interval in ps.
nstdhdl	100	Interval in MD steps for writing free-energy derivatives and Hamiltonian differences to dhdl.xvg.

trajectory_interval_ps, energy_interval_ps, and log_interval_ps follow the same broad semantics as other PRISM MD workflows. nstdhdl is the FEP-specific addition in this section: PRISM passes it through to the generated window MDPs so you can control how often dhdl.xvg is written.

PRISM currently keeps separate-dhdl-file = yes, so each production window writes a dedicated dhdl.xvg file for downstream analysis instead of storing those derivatives only inside ener.edr.^{7 10 11}

execution section

Key	Default	Meaning
mode	standard	Production execution mode: standard or repex.
num_gpus	null	Total GPUs available to generated scripts.
parallel_windows	null	Concurrent windows in standard mode; if omitted, scripts fall back to GPU count.
total_cpus	null	Total CPUs available; used to derive OpenMP threads when omp_threads is not set.
omp_threads	null	Manual OpenMP thread override per worker/rank.
use_gpu_pme	true	Whether production helpers request -pme gpu.
mdrun_update_mode	auto	Runtime update mode: auto, gpu, cpu, or none.
use_gpu_update	false	Legacy compatibility switch; current FEP defaults keep GPU-side update off unless explicitly enabled.

Top-level key

Key	Default	Meaning
replicas	3	Number of bound/unbound repeat directories to scaffold.

Troubleshooting

Mapping looks chemically wrong

• verify protonation and tautomer states first
• prefer MOL2 or SDF when PDB loses bond-order information
• inspect common/hybrid/mapping.html before trusting a scaffold

Windows fail early

• inspect leg-level build/em.log, build/nvt.log, and build/npt.log
• inspect the hybrid files in common/hybrid/
• rerun a short validation run before launching long production if you have changed the scaffold or runtime settings substantially

Analysis finds no windows

• pass the leg directories (.../bound and .../unbound) unless you intentionally want to analyze only one repeat
• if you pass leg directories, PRISM expects the number of repeat* subdirectories under bound and unbound to match
• confirm that each window_* directory contains production outputs such as prod.* and dhdl.xvg

Practical Notes

• Prefer an explicit fep.yaml for reproducible lambda schedules.
• When resources allow, analyze multiple repeat* pairs together instead of relying on a single repeat.
• The CLI still exposes --lambda-windows, but it is a simplified override. If you care about exact schedules, define the lambda section explicitly in YAML.
• execution.mode, parallel_windows, num_gpus, total_cpus, and omp_threads only affect generated run scripts; they do not change the topology or lambda schedule.
• If you use custom lambda schedules, validate the arrays carefully before large production campaigns.
• In standard mode, generated scripts assign GPUs round-robin across windows and use -pinoffset to separate CPU blocks between GPU workers.
• If execution.total_cpus is set, PRISM derives omp_threads from the available CPU budget; execution.omp_threads acts as a manual override.
• GPU PME is enabled by default in generated production helpers, but GPU-side update is not enabled by default because FEP mass-perturbation workflows are not generally compatible with -update gpu.
• With CUDA builds of GROMACS 2026.0+, perturbed non-bonded free-energy kernels can also run on the GPU, so PRISM's default GPU production path may benefit automatically from newer GROMACS releases even while use_gpu_update remains disabled by default.

References

See Also

• FEP Tutorial — a step-by-step worked example that walks through scaffold generation, production setup, and analysis.
• Analysis Tools — command-line and report-oriented guidance for inspecting trajectories, energies, convergence, and related post-processing outputs.
• Configuration — the broader PRISM configuration reference beyond the FEP-specific fep.yaml options documented here.

---

1. GROMACS current reference manual, Free energy implementation. ↩↩↩

2. GROMACS current reference manual, Free-energy interactions. ↩↩↩↩

3. GROMACS current online help, gmx grompp. ↩

4. GROMACS .mdp option: init-lambda-state. ↩

5. GROMACS .mdp option: calc-lambda-neighbors. ↩

6. GROMACS current manual. ↩

7. GROMACS current manual, Molecular dynamics parameters (.mdp options). ↩↩

8. GROMACS .mdp option: sc-alpha. ↩

9. GROMACS .mdp option: sc-sigma. ↩

10. GROMACS .mdp option: nstdhdl. ↩

11. GROMACS .mdp option: separate-dhdl-file. ↩

12. GROMACS 2026.1 release notes: fixes for perturbed non-bonded interactions on GPU. ↩
